1958 Corvette - Frame
Click to enlarge

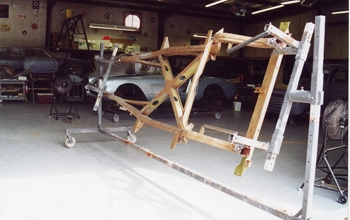

We mounted the frame to a rotator and as you can see, she has been abused and painted from underneath a few times and in need of a total restoration.
Click to enlarge

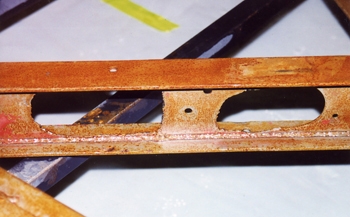

The frame had been cut out with a torch in many areas including this section for non factory exhaust clearance.
Click to enlarge

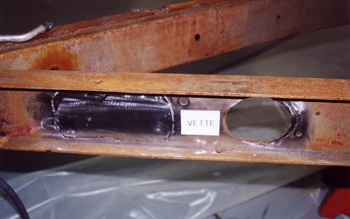

We fit some metal in flush then welded and ground it smooth on many areas. When finished there will be no detection of any repairs ever made.
Click to enlarge

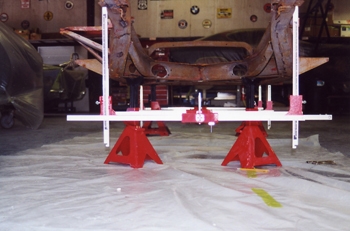

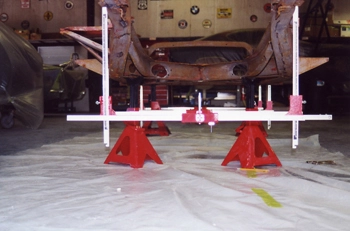

We put our gauges on the frame and found it to be out of alignment so we straightened it and as seen its dead on level!
Click to enlarge

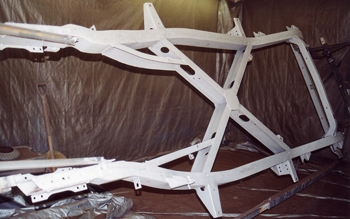

We rolled the frame into the blasting booth and using 80 grit aluminum oxide she is now white metal clean and ready for primer.
